Rear-leaf-spring-for-an-AL-KO-trailer-3-leaves-1-1
AL-KO
- model: +86-15689053701

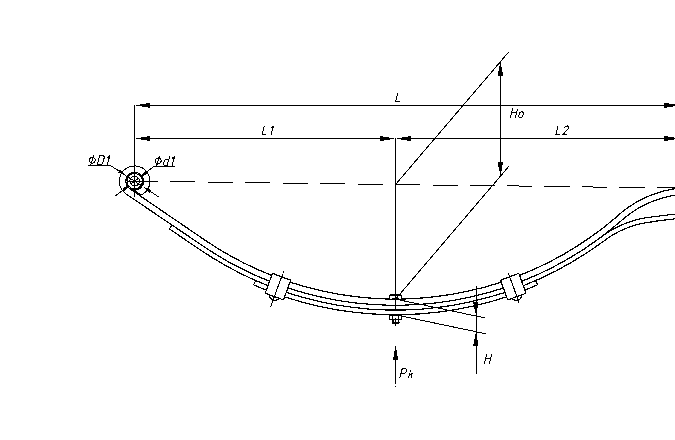

| Specifications | |
|---|---|
| OEM | 1337371 |
| Number of leaves | 3 |
| Maximum load, Pk, tons | 0,375 |
| Total weight, kilos | 5,3 |
| Working length of the leaf spring, L, mm | 705 |
| L1, mm | 332 |
| L2, mm | 373 |
| Total thickness, H, mm | 20 |
| Free camber, Ho, mm | 150 |
| D1, mm | 23 |
| d1 bushing inner diameter, mm | 12,6 |
